Quick Details

  • Place of Origin: China (Mainland)
  • Brand Name: Seaory-Customzied Kiosk
  • Model Number: SK018
  • Touch screen type: Capacitive Touch
  • Touch Screen size: 17inch/19inch/21.5inch
  • Card Printer: Seaory T12
  • Ticket Printer: thermal printer with 80mm width
  • Cash Acceptor Way: single or multi accept type
  • Wifi: Yes
  • Voltage: 110V/220V/230V
  • Camera: ATM standard or custom HD camera
  • Applications: Indoor/outdoor
  • Warranty: 1 year

Packaging & Delivery

Packaging Details Self-service bank card dispenser kiosk :
1. Security Packing method with bubble foam and wooden case
2. customized customer's requirements.
Delivery Time 45-50days ( after received the payment)

Best sale 2d/3d barcode scanner ticket printing payment kiosk with bill acceptor

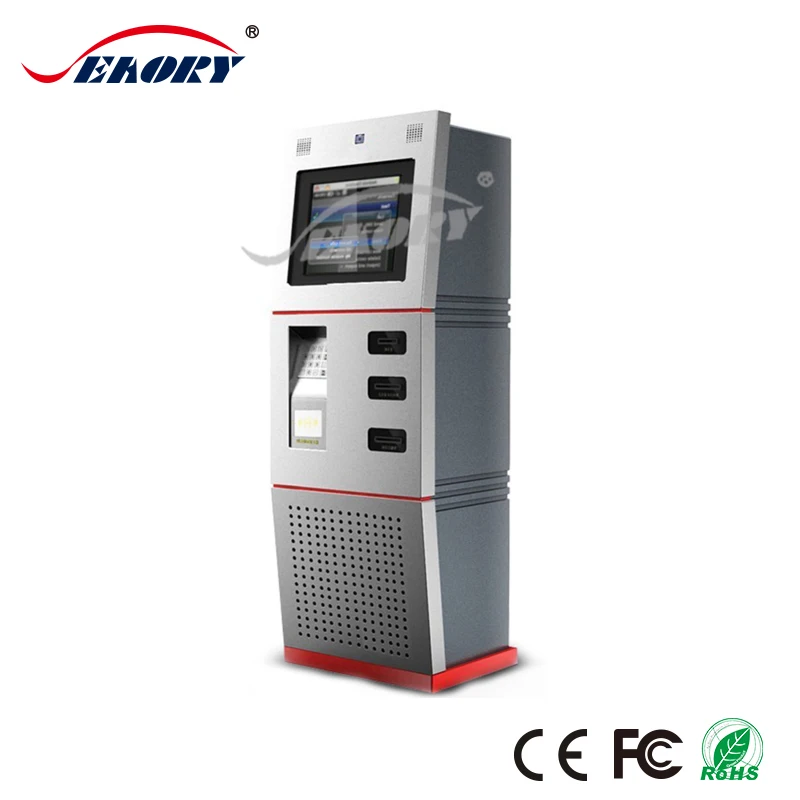

Product Description

Product Series:

Car dispenser kiosk

Model No:




Industrial Computer

Low power consumption, high performance Industrial PC motherboard


19inch;Display scale:5:4;Resolution:4096×4096;Port Type:USB;

Touch screen

19-inch capacitive 5mm tempered glass, USB interface, support for multi-touch

Privacy Screen

 Compatible size:19 inch

Bank card reader

Bank card reader/ credit card reader/ debit card reader/VISA card reader

Encrypted metal keypad

Mechanical properties: Key life:> 2 million times key pressure: 2-3N

Key travel: 1.5mm Protection Level: IP65 (static) / IP54 (dynamic)

Font button: laser engraving etched fill oil.

RFID &NFC card reader

Support ISO14443-3 S50,S70,UL card; Support  Support ISO7816  T=0,T=1ISO14443-4 A&B; Communication Terms:PCSC,CCID,USB 2.0 ;

A4 Printer

Laser printer; Product Type: black and white laser printer;The largest print format: A4;Paper tray capacity Standard: 250 sheets;

Interface type: USB2.0.

      QR code

Scan bar codes: one-dimensional, two-dimensional, power interface: USB, illuminated, image sensor: CMOS, data port: MINI USB.

  Fingerprint reader

Capacitive fingerprint mode, the interface USB2.0, support for wide printing mode

Card dispenser

Card Size: 55 × 86mm card thickness: 0.36 ~ 1.0mm

Card tank capacity: 500pcs / 0.76mm standard card

                              (maximum load capacity of the card 500PCS)


5w Active Sound


Wide-angle camera,anti-explosion  exclusive camera for ATM

POS terminal

Motor-driven, push-rod design, the POS can be protected very well avoid damaging

Time setting module

Set the time of power on and power off computer part, prolong the service time

Receipt Printer

Print method: thermal;Print width: Max.80mm;The paper way: all cut;

Journal Printer


Print method: thermal;Resolution: 203 × 203DPI;Printing speed: Max.150mm / s

Print width: Max.80mm

Kiosk Cabinet

Durable cold rolled steel, high&Low temperature resistance,

slim and smart design, easy to install, Moisture proof, Antirust, Anti-acid, Anti-dust, Static free



Net weight


Custom Option

The above configuration can be customized


Product Introduction:

S-SK018 kiosk mainly focus on tickets vending can be used in the fields such as Scenic spots, cinema, metro station, bus station etc.

The equipment with the functions as below:

1. Information inquiry                                          2. Ticket printing

3.  Card reader                                                     4. Self- help payment( card/ cash)

5.  LED rolled caption advertisement              6. QR Code scanner

With high performance display monitor, shapely design and powerful PC system, It can highly increase  the efficiency of ticket vending, Reduce working staff and cost. Bring a lot convenience for daily life.


Product features:

1. Elegant design, intelligent operation.

2. Touch screen technology, easy operation friendly interface.

3. Industry PC host, sensitive response, fast processing speed.

4. 3 DES Encrypted Pin pad, Improve the safety standard.5. Multi-way payment, makes more and more convenience.




Packaging & Shipping

♣♣Pakcing details♣♣

Option 1

Security Packing method with bubble foam and wooden case

Option 2

According to customer's requirements!

♣♣Shipping Detail♣♣


Company Information


Leading One-stop Self-service Kiosk Manufacturer in China.

Shenzhen Seaory Technology Co. Ltd was founded in 2002 in Shenzhen, China. We are the leading manufacturer that specializing in researching, designing, manufacturing, and providing a complete solution for self service Kiosks.

We provide customized kiosk solutions for various industries including banking, telecom and transportation. We have rich experience in terminal, electronics, telecommunication, and financial equipment production.

Dedicated and Professional Staff for Global Market.

Our company has been certified by ISO9001: 2008 international quality system. Our products have passed CE, CCC, FCC, RoHS and other international tests and certifications. Our company With rich experience in kiosk industry and global delivery experience all over the world. 75% of our engineer and technical staff with more than 8 years experience in the kiosk field.

OEM and Custom Designs are Welcome.

We have cooperated with a lot of clients all over the world for 10 years. Experienced with different kinds of kiosk project including United States and European market. Our team is ready to provide solution and OEM/ODM service to the new intelligent world.
